What Base Preparation Does a Paver Patio Require in Clay Soil

Clay soil expands when wet and contracts when dry. That cycle of movement destroys paver patios that lack adequate base preparation. The solution is a graded, compacted aggregate system installed beneath the pavers to distribute load, manage drainage, and resist displacement from soil movement and frost.

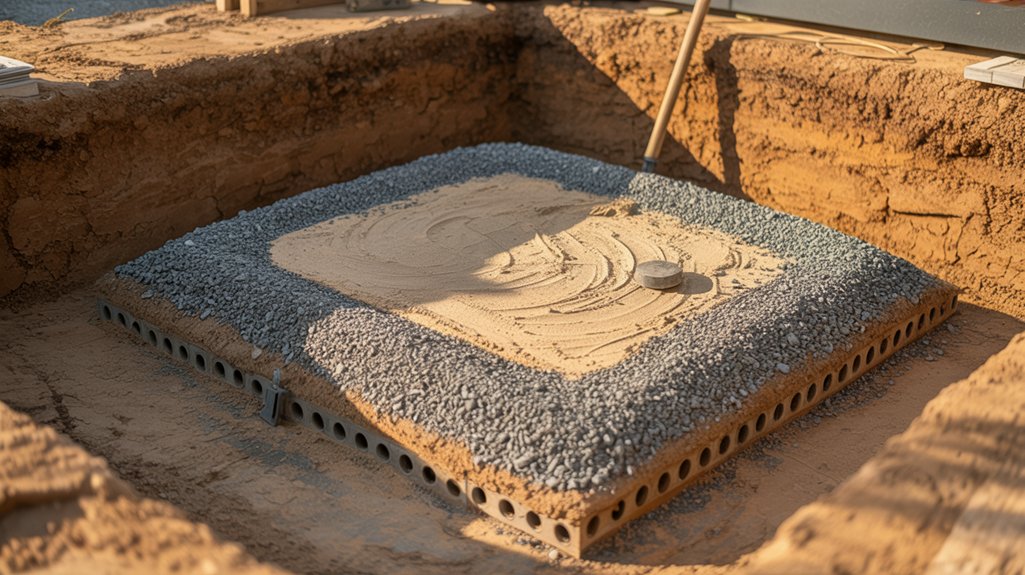

For most clay soil conditions, base preparation means excavating to stable subgrade, installing 6 to 12 inches of compacted aggregate, and placing a coarse sand bedding layer before setting pavers. Highly plastic clay soils require deeper profiles and more aggressive compaction standards.

—

Why Clay Soil Creates Specific Problems for Paver Bases

Clay particles hold water and swell. When temperatures drop, that retained moisture freezes and expands, pushing pavers upward. When it thaws, pavers settle unevenly. This is frost heave, and it is the primary failure mechanism for improperly prepared paver patios in clay-dominant soils.

Clay also drains slowly. Standing water beneath a paver surface saturates the subgrade and softens it, reducing load-bearing capacity. A properly designed base intercepts that water and routes it away before it reaches the clay layer.

—

Excavation Depth in Clay Soil

Standard paver installations call for removing enough soil to accommodate the bedding layer, aggregate base, and paver thickness. In clay soil, that typically means excavating 10 to 16 inches below finished grade, depending on frost depth and soil plasticity.

Frost depth governs minimum base thickness in cold climates. The base must extend below the frost line or be thick enough to prevent frozen ground movement from transmitting upward through the pavers. Local building departments publish frost depth requirements specific to each region.

Excavation should reach undisturbed, stable subgrade. If soft or saturated clay is encountered at the planned excavation depth, digging deeper and adding more aggregate is necessary before proceeding.

—

Aggregate Base Requirements

Material Selection

Crushed angular aggregate — typically referred to as compactible gravel, road base, or crusher run — is the standard base material. Angular particles interlock when compacted, creating a stable mass. Rounded river gravel does not compact effectively and should not be used.

Aggregate gradation matters. A well-graded mix containing both coarse and fine particles fills voids and compacts tightly. Many contractors use a 3/4-inch minus crushed stone with fines for this reason.

Compaction Standards

Loose aggregate must be compacted in lifts, not all at once. Each lift should be no more than 4 inches of loose material before compaction. Compacting thicker lifts leaves the lower portion under-compacted regardless of how many passes are made.

Compaction targets in clay soil conditions are typically expressed as a percentage of Modified Proctor density, a laboratory-established maximum. Reaching 95% Modified Proctor ensures the aggregate base will not continue to settle under load after installation. A plate compactor handles small residential areas; a jumping jack compactor performs better on cohesive soils.

Base Thickness in Clay-Heavy Conditions

Minimum aggregate base thickness for residential paver patios on clay soil is generally 6 inches after compaction. In regions with significant freeze-thaw activity or highly plastic clay, 8 to 12 inches is more appropriate. Contractor experience and local soil reports should inform the final specification.

—

Bedding Layer

A 1-inch layer of coarse concrete sand sits between the compacted aggregate base and the pavers. This layer provides a consistent, level surface for setting pavers and allows minor adjustments during installation.

Bedding sand should not be compacted before pavers are placed. It should also not be used as a substitute for proper base depth. Thick sand layers create an unstable cushion that allows pavers to shift.

—

Drainage Integration

Base preparation in clay soil must account for drainage. Clay’s low permeability means water that enters the base system has limited downward escape. Grading the subgrade and the finished paver surface to direct water away from structures is essential.

Some installations incorporate perforated pipe at the subgrade level to collect and redirect water. The outlet must terminate at a point where water can discharge freely, typically a daylight location on a slope or a storm drainage connection where permitted.

—

Geotextile Fabric Use

A non-woven geotextile fabric placed between the clay subgrade and the aggregate base serves two purposes. It separates the fine clay particles from the aggregate, preventing migration that would degrade compaction over time. It also allows water to pass through in one direction while resisting upward clay intrusion.

Fabric is not a substitute for adequate base depth. It is a supplemental measure that extends the effective life of the base system in clay conditions.

—

FAQ

What is the minimum base depth for a paver patio on clay soil?

Most industry guidelines recommend a minimum compacted aggregate base of 6 inches for residential paver patios on clay soil. Freeze-thaw exposure and soil plasticity can push that requirement to 12 inches or more. The Interlocking Concrete Pavement Institute provides installation specifications that inform regional depth decisions.

Does clay soil require special compaction equipment?

Standard plate compactors can handle granular aggregate base material on clay subgrade for most residential projects. Cohesive clay subgrade itself responds better to a jumping jack or rammer compactor if additional subgrade compaction is needed. Equipment selection affects whether the compaction target of 95% Modified Proctor is actually achieved throughout each lift.

Why does the bedding sand layer stay at 1 inch?

A 1-inch bedding sand layer provides enough material for screeding a level surface without creating an unstable cushion beneath the pavers. Thicker sand beds compress unevenly under load and allow pavers to rock or shift over time. The American Concrete Institute references this specification in concrete unit paving installation guidance.

Can a paver patio be installed directly on clay without aggregate base?

Installing pavers directly on clay subgrade without an aggregate base produces rapid failure through settling, heaving, and surface displacement. Clay lacks the load-bearing stability and drainage capacity that a compacted aggregate base provides. No recognized paving standard supports omitting the base layer in clay soil conditions.

What role does geotextile fabric play in clay soil paver bases?

Geotextile fabric placed at the subgrade-aggregate interface prevents clay fines from migrating upward into the base material over time. That migration, called pumping, progressively degrades compaction and destabilizes the base. The fabric extends base performance but does not replace adequate aggregate depth or proper compaction.

—

Meta Description:

Paver patio base preparation in clay soil requires 6 to 12 inches of compacted aggregate, geotextile separation, and 95% Modified Proctor compaction to prevent frost heave and settlement.

Clay Soil Challenges for Paver Installations in Colorado Springs

Colorado Springs presents compounding geotechnical and climatic pressures that make paver base preparation considerably more demanding than in most Front Range markets. The Pierre Shale formation underlying much of the city’s central and western corridors contains bentonite interbeds capable of displacing ground surface nearly 8 centimeters following a single significant rain event — a magnitude of movement that fractures rigid base layers and disrupts joint alignment across an entire patio field. At 124 freeze-thaw cycles annually and a 50-year frost line depth of 38 inches, even a well-compacted base that accommodates seasonal moisture will face repeated vertical stress unless excavation and drainage design account for both variables together.

Pierre Shale and Bentonite Swell Behavior in El Paso County

Pierre Shale underlies much of the central and western portions of Colorado Springs. Its bentonite interbeds make it one of the more consequential soil formations for construction in El Paso County. Understanding how these layers behave under moisture infiltration determines whether a hardscape or structural installation holds its position or fails within a few seasonal cycles.

—

What Pierre Shale Actually Contains

Pierre Shale is a marine sedimentary formation deposited during the Cretaceous period. In El Paso County, it appears beneath a significant portion of Colorado Springs, particularly in the central and western zones where it sits close enough to the surface to affect shallow foundations, flatwork, and paved installations.

The formation is not uniformly problematic. The concern lies specifically in its bentonite interbeds — thin layers of smectite-dominant clay distributed through the shale matrix at irregular intervals.

—

Bentonite Interbed Thickness and Distribution

Bentonite layers within Pierre Shale typically measure between one and three inches under average site conditions. Locally, these layers can reach up to eight inches where the formation thickened during original deposition or where weathering has altered the clay concentration.

This variability matters during site assessment. A shallow test boring that misses a thicker interbed will underestimate the swell potential at that location. Lateral continuity is inconsistent, which means a layer found at one corner of a site may not appear at another.

—

Plasticity Index and Swell Classification

Plasticity Index values in Pierre Shale bentonite regularly exceed 35. That threshold places these materials in the high-swell classification under standard geotechnical criteria used by the Colorado Geological Survey and referenced in county-level grading ordinances.

A Plasticity Index above 35 indicates the clay fraction has a wide range between its liquid and plastic limits. In practice, that translates to substantial volumetric change when moisture content shifts — expansion on wetting, contraction on drying, and cumulative displacement across repeated cycles.

—

How Swell Forces Affect Surface Installations

Upward Pressure on Pavers and Flatwork

When moisture infiltrates beneath a paver installation over expansive subsoil, the bentonite interbeds absorb water and expand. That expansion is directional. Confinement from surrounding soil channels the force upward. Edge restraints crack or displace, bedding sand migrates, and surface units shift out of plane.

A single infiltration event — one heavy rainstorm — can produce measurable ground displacement. The deformation is often irreversible because the clay structure does not return to its original volume upon drying.

Why Standard Base Preparation Falls Short

Conventional base preparation protocols — compacted aggregate base over native soil — are designed for soils with low to moderate swell potential. Applied over Pierre Shale bentonite, these methods do not address the displacement forces that originate below the base course.

The aggregate layer may remain intact while the surface above it deforms. The failure mechanism is not in the base material itself but in the expansion occurring beneath it.

—

Site Assessment Requirements in El Paso County

El Paso County’s development standards require geotechnical investigation for many project types in areas mapped with expansive soils. Pierre Shale coverage is documented in CGS publications and in the county’s soils mapping resources, which identify high-swell risk zones across the central and western portions of Colorado Springs.

A site-specific investigation should include index testing on sampled clay materials, identification of bentonite interbed depth and thickness, and swell pressure testing under simulated load conditions. These results determine whether mitigation is structurally necessary and what form it should take.

—

Mitigation Approaches for Expansive Subsoil Conditions

Structural mitigation for Pierre Shale bentonite generally falls into three categories: removal and replacement of the expansive material, chemical stabilization using lime or cement to reduce swell potential, and design modifications that accommodate movement rather than resist it.

Lime stabilization is commonly applied in Colorado Front Range projects. Lime reacts with smectite clay to reduce its plasticity and limit volumetric change. The Colorado Department of Transportation uses lime stabilization protocols on state routes crossing expansive soil zones in this region.

Removal and replacement is feasible for shallow interbed occurrences but becomes cost-prohibitive when layers are deeper or thicker. Design modifications — including isolation joints, flexible restraint systems, and drainage configurations that limit moisture infiltration — are often combined with stabilization rather than used independently.

—

Frequently Asked Questions

What makes Pierre Shale bentonite different from ordinary expansive clay?

Pierre Shale bentonite is dominated by sodium smectite, a clay mineral with among the highest known volumetric swell ratios of any naturally occurring material. Ordinary expansive clays may have Plasticity Index values in the moderate range, while Pierre Shale bentonite regularly exceeds 35 in El Paso County testing records. The Colorado Geological Survey identifies this formation as a primary contributor to foundation and flatwork damage across the Colorado Springs area.

How deep do bentonite interbeds typically occur in Colorado Springs?

Interbed depth varies by location, but shallow occurrences within the upper several feet of subgrade are documented across the central and western portions of Colorado Springs. Depth is not consistent across a single parcel, which is why single-point borings can produce incomplete assessments. Geotechnical investigation protocols recommended by the Colorado Geological Survey call for multiple sampling locations on sites mapped within Pierre Shale coverage areas.

Does drainage control alone prevent swell-related displacement?

Drainage management reduces the frequency of moisture infiltration but does not eliminate swell risk where bentonite interbeds are present. Even controlled moisture exposure can trigger measurable expansion in high-plasticity clays, and surface drainage cannot address subsurface lateral water migration. Effective mitigation requires addressing the clay material directly through stabilization, removal, or structural accommodation, not drainage alone.

Is lime stabilization effective on Pierre Shale bentonite?

Lime stabilization reduces the plasticity of smectite-dominant clays and limits their capacity for volumetric expansion when properly applied. The Colorado Department of Transportation uses lime stabilization on Front Range roadway projects crossing expansive soil formations, including Pierre Shale zones. Effectiveness depends on lime content, mixing depth, curing conditions, and whether the treated layer is isolated from ongoing moisture infiltration.

—

Meta Description:

Pierre Shale bentonite interbeds in El Paso County produce high-swell conditions across central and western Colorado Springs, with Plasticity Index values exceeding 35 requiring geotechnical mitigation.

Frost Line Depth and Freeze-Thaw Cycling Implications

Frost Line Depth and Freeze-Thaw Cycling Implications for Colorado Springs

Colorado Springs sits in one of the most thermally aggressive environments of any major U.S. city. The frost line depth reaches 38 inches, and the ground cycles through freeze-thaw stress 124 times per year on average. Any paving or foundation system that ignores these figures will fail — not occasionally, but predictably.

—

What the Frost Line Depth Means for Colorado Springs

NOAA engineering weather data for station KCOS establishes the frost line depth at 38 inches, calculated at a 50-year recurrence interval. That figure represents the depth to which ground temperatures reliably drop below freezing during a severe but statistically realistic winter.

Any granular base that does not extend to or below 38 inches remains exposed to frost heave. Water trapped in fine-grained material expands approximately 9 percent by volume when it freezes, according to NOAA data. That expansion exerts upward pressure against whatever structure sits above it.

The 38-inch standard is not a conservative estimate — it is the engineered minimum.

—

Why Freeze-Thaw Cycling Makes Colorado Springs Different

Most cold-climate cities contend with deep frost but relatively few freeze-thaw cycles per season. Colorado Springs does not follow that pattern. A mean diurnal temperature swing exceeding 25°F produces a documented average of 124 annual freeze-thaw cycles, placing the city among the highest-cycling major urban areas in the country.

Each cycle does incremental work on the soil and any material embedded within it. The damage is not dramatic in any single event. It accumulates across months and seasons.

—

Pierre Shale Soils Amplify the Problem

The geology beneath much of Colorado Springs introduces clay-bearing soils derived from Pierre Shale. Clay soils are particularly susceptible to frost action because they retain moisture and have fine particle structures that promote ice lens formation.

In these soils, each freeze-thaw cycle produces small vertical displacements in the material. Over a full season of 124 cycles, those displacements compound. The result is progressive destabilization of paver bedding layers and the loss of planar surface continuity required under IRC site-drainage provisions.

This is not a marginal risk factor. In Pierre Shale-derived soils, ignoring the 38-inch frost line depth while also discounting cycle frequency is a reliable path to structural failure.

—

IRC Site-Drainage Provisions and Surface Planarity

The International Residential Code requires finished grade surfaces to maintain drainage away from structures. That standard depends on a stable, planar surface. Frost heave in high-cycle environments like Colorado Springs breaks planarity through differential vertical movement — one section of a paved area rises while an adjacent section does not.

Once planarity is lost, water pools against foundations rather than draining away from them. The IRC provision exists precisely to prevent that condition, which means frost depth compliance is not separable from drainage compliance.

—

FAQ

What is the frost line depth for Colorado Springs?

NOAA engineering weather data for station KCOS places the Colorado Springs frost line depth at 38 inches, based on a 50-year recurrence interval. This represents the depth below which base materials must extend to avoid frost heave exposure. Installations that terminate above this depth in fine-grained soils are structurally vulnerable under standard engineering practice.

—

How many freeze-thaw cycles does Colorado Springs experience annually?

Colorado Springs averages 124 freeze-thaw cycles per year, driven by a mean diurnal temperature swing exceeding 25°F. That figure places the city among the most thermally active major urban areas in the United States. The cumulative mechanical stress from that cycle frequency accelerates base layer displacement and surface deformation in susceptible soils.

—

Why do Pierre Shale soils increase frost heave risk?

Pierre Shale-derived soils contain clay minerals that retain moisture and support ice lens formation during freeze events. Each freeze-thaw cycle introduces incremental vertical displacement within these soils, and the effect compounds over a full season. The IRC site-drainage provisions assume surface planarity that clay-bearing soils under repeated cycling cannot maintain without a properly depth-compliant base.

—

What happens when a paver base does not reach frost line depth?

A base that terminates above the 38-inch frost line remains in the zone of active freezing, where trapped water expands approximately 9 percent by volume upon freezing. That expansion lifts the surface unevenly, breaking the planar grade required for compliant drainage. NOAA’s recurrence-interval methodology confirms this depth standard reflects realistic worst-case seasonal conditions, not extreme outliers.

—

Meta Description:

Colorado Springs frost line depth reaches 38 inches per NOAA KCOS data, with 124 annual freeze-thaw cycles placing high stress on paver bases and IRC-compliant drainage surfaces in Pierre Shale soils.

Engineered Base Systems for High-Swell Colorado Soils

Where Pierre Shale or Dawson Formation claystone underlies a proposed patio site, standard base depths fail to account for the vertical displacement those soils produce under moisture loading. Contractors typically overexcavate 18 to 24 inches below finish grade and backfill with compacted structural fill — generally crusher run aggregate or a cement-treated base — placed in lifts no greater than 4 inches and compacted to 95% of ASTM D1557 Modified Proctor density. That compaction benchmark isn’t incidental; reaching it in controlled lifts is what prevents differential settlement when seasonal freeze-thaw cycles and swelling clays work against the structural integrity of the paver field above.

Subgrade Overexcavation and Structural Fill Requirements

Subgrade Overexcavation and Structural Fill Requirements in Colorado Springs

Pierre Shale underlies much of central and western Colorado Springs, and it moves. A single rainstorm can displace the ground surface by 7.5–8 cm, according to documented field observations tied to bentonite interbeds with Plasticity Index values exceeding 35. Standard compacted gravel bases placed directly on this material will not hold. Subgrade overexcavation followed by engineered structural fill is the baseline requirement for any pavement or foundation system built over reactive soils in this region.

—

Why Pierre Shale Demands Overexcavation

Bentonite interbeds within Pierre Shale absorb moisture rapidly and expand with enough force to fracture rigid pavement sections and displace building slabs. Plasticity Index values above 35 classify these soils as high-volume-change material under ASTM standards. Compaction alone does not neutralize swell potential — the reactive layer must be physically removed.

Overexcavation depths are set to clear the active swell zone entirely. On sites where frost and swell hazards overlap, that calculation also incorporates the frost line depth. NOAA KCOS Engineering Weather Data establishes the 50-year recurrence frost line for Colorado Springs at 38 inches. That figure becomes a controlling minimum on many sites across the region.

—

Structural Fill Specifications

Compaction Standards

Replacement fill must reach 95% of ASTM D1557 Modified Proctor density. This is the Modified Proctor standard, not Standard Proctor — a distinction that matters because the higher compactive effort reflects actual loading conditions under engineered pavements and structures.

Lift thickness during placement cannot exceed 3–4 inches. Thicker lifts prevent compaction energy from reaching the lower portion of the layer, leaving pockets of under-compacted material that consolidate under load.

Material Selection

Structural fill in overexcavated zones requires granular material with low plasticity. Angular crushed aggregate compacts more uniformly than rounded material and resists lateral migration under cyclic loading. Recycled concrete aggregate may qualify on some projects but requires verification of gradation and PI before acceptance.

—

Frost Depth and Swell Hazard Overlap

When frost penetration and expansive soil conditions occur on the same site, the design cannot address each independently. Frost heave in a swell-prone subgrade compounds displacement beyond what either mechanism produces alone.

The 38-inch frost line from NOAA KCOS data sets a floor for excavation depth on susceptible sites. Where the active swell layer extends deeper than 38 inches, that greater depth controls. Engineers resolve the conflict by taking the more conservative of the two values and verifying it against site-specific boring logs.

—

Execution in the Field

Subgrade preparation begins with stripping the reactive material to the specified depth and confirming the bearing layer by proofroll or dynamic cone penetrometer testing. Any soft spots identified during proofroll require additional removal before fill placement begins.

Fill is placed and compacted in lifts with nuclear density gauge or sand cone verification at the frequency specified in the geotechnical report. Final grades must account for the full structural fill section so that surface drainage does not redirect water toward the overexcavated zone.

—

FAQ

What triggers subgrade overexcavation on a Colorado Springs project?

Overexcavation is required when site soils exhibit high swell potential, typically indicated by a Plasticity Index above 35 or documented ground displacement from reactive clay or bentonite interbeds. Pierre Shale formations in central and western Colorado Springs consistently meet this threshold. Geotechnical engineers confirm the requirement through laboratory testing and field boring data before design begins.

How deep does overexcavation typically go in Colorado Springs?

Excavation depth depends on the thickness of the active swell layer and the applicable frost line. NOAA KCOS Engineering Weather Data places the 50-year recurrence frost line at 38 inches for Colorado Springs. Where expansive soil extends below that depth, the geotechnical engineer’s boring log governs the final excavation limit.

What compaction standard applies to structural fill in these conditions?

Structural fill placed in overexcavated zones must be compacted to 95% of ASTM D1557 Modified Proctor density. Lifts are limited to 3–4 inches to ensure compaction energy reaches the full layer depth. Field verification is conducted by nuclear density gauge or sand cone testing at intervals specified in the project geotechnical report.

Why is lift thickness restricted to 3–4 inches?

Compaction equipment transfers energy through a finite depth of material, and thicker lifts leave the lower portion under-compacted. Under-compacted zones consolidate unevenly under structural loads, producing differential settlement. The 3–4 inch limit is a standard construction control measure referenced in ASTM D1557 application guidance for engineered fill systems.

—

Meta Description:

Colorado Springs subgrade overexcavation requirements for Pierre Shale sites, covering structural fill compaction to 95% ASTM D1557 and the 38-inch NOAA KCOS frost line depth standard.

Compaction Standards and ASTM D1557 Benchmarks

ASTM D1557 defines the Modified Proctor compaction standard used across engineered base systems. For paving projects over expansive soils, 95% maximum dry density is the structural threshold — not a conservative estimate, but the minimum acceptable condition for long-term performance.

—

What ASTM D1557 Requires

The Modified Proctor test applies greater compactive effort than Standard Proctor testing, using 56 blows per layer at 10 pounds of hammer energy across five lifts. This higher input reflects real-world stress conditions generated by cyclic loading beneath pavements, where subgrade consolidation under traffic differs substantially from static loading assumptions.

Standard Proctor values underestimate the density needed in high-traffic or expansive-soil applications. ASTM D1557 corrects for that gap.

—

Why 95% Maximum Dry Density Is a Structural Requirement

Under-compacted fill placed over reactive subgrade does not simply settle uniformly. It consolidates at variable rates depending on moisture variation, loading cycles, and the swelling pressure of the underlying material. That variability translates directly into differential movement at the paver surface.

In Colorado Springs, Pierre Shale bentonite interbeds carry Plasticity Index values exceeding 35. At those PI levels, soil volume change under moisture fluctuation is significant enough that base compaction controls final surface geometry as much as the aggregate gradation does.

Reaching 95% MDD is not achievable through a single thick pass. Lift thickness cannot exceed 3 to 4 inches per layer, ensuring compaction energy penetrates the full depth of each lift rather than densifying only the surface zone.

—

Lift Thickness and Depth Constraints in Practice

The 3-to-4-inch lift restriction becomes operationally demanding when overexcavation extends to depth. Colorado Springs projects targeting frost protection must reach the 38-inch frost line established by NOAA KCOS Engineering Weather Data. At that depth, a compliant base section requires a minimum of nine to twelve individual lifts, each tested before the next is placed.

Compaction testing at each lift is not procedural formality. It is the only method that confirms energy transfer through the layer rather than inferring it from surface readings alone.

—

Testing Protocol Considerations

Nuclear density gauge testing or sand cone methods per ASTM D1556 are the standard verification approaches. Field measurements should reference the laboratory-derived maximum dry density from the project-specific Modified Proctor test — not generic published values for a soil classification. Soil variability across a single site can shift the MDD reference point enough to make generic values unreliable.

—

Frequency and Documentation

Most engineered specifications require one density test per 500 square feet of compacted lift area at minimum. Projects over high-PI soils often tighten that interval to 250 square feet. Test reports should record lift number, field dry density, moisture content, corresponding laboratory MDD, and percent compaction achieved.

Documentation serves two functions: it confirms structural adequacy during construction and establishes baseline data if differential settlement claims arise after installation.

—

FAQ

What compaction standard applies to engineered paving base systems?

ASTM D1557, the Modified Proctor standard, sets the compaction benchmark at 95% maximum dry density for engineered base systems. The test uses higher compactive effort than Standard Proctor to reflect actual cyclic loading conditions under pavements. Specifying engineers reference ASTM D1557 rather than D698 when subgrade conditions or traffic loading exceed residential-grade assumptions.

—

Why is lift thickness limited to 3 to 4 inches during compaction?

Compaction energy from surface equipment attenuates with depth, and lifts thicker than 4 inches prevent that energy from reaching the lower portion of the layer. A lift that tests at acceptable density at its surface may remain under-compacted at its base. ASTM D1557 procedural guidance and geotechnical practice both treat lift thickness as a direct control on whether specified density is physically achievable.

—

How does Pierre Shale affect compaction requirements in Colorado Springs?

Pierre Shale bentonite interbeds found throughout the Colorado Springs region carry Plasticity Index values exceeding 35, indicating high swell potential under moisture variation. That reactivity means subgrade volume change can continue after construction if base compaction is inadequate to stabilize moisture migration. Geotechnical engineers in this market typically specify compaction verification at closer intervals than national minimums to account for this soil behavior.

—

What frost depth governs base design in Colorado Springs?

NOAA KCOS Engineering Weather Data establishes a 38-inch frost line for the Colorado Springs area. Base systems must extend to or below that depth to prevent frost heave from disrupting the compacted section. Projects that require 38-inch overexcavation and comply with 3-to-4-inch lift limits will require a minimum of nine individual compacted lifts.

—

Meta Description:

ASTM D1557 Modified Proctor standards for engineered paving base systems in Colorado Springs, including the 95% maximum dry density threshold and NOAA KCOS 38-inch frost line requirements.

Drainage Design and Surface Slope Across Colorado Springs Neighborhoods

Permeable paver systems address Colorado Springs’ 15.91-inch annual precipitation not by redirecting runoff but by managing infiltration at the surface, a critical distinction in HSG D soils where standing water accelerates the clay expansion cycles that destabilize base layers over successive seasons. Surface slope—maintained at the IRC-prescribed minimum of ¼ inch per foot away from structures—functions as the first line of hydraulic control, but slope alone can’t compensate for lateral migration of subsurface moisture when edge restraints fail to contain base material under repeated freeze-thaw loading. With 124 annual freeze-thaw cycles compressing and releasing compacted aggregate, edge confinement systems bear a structural load that’s often underestimated until pavers begin shifting outward at the perimeter.

Permeable Paver Systems and Stormwater Management

Permeable Paver Systems and Stormwater Management in Colorado Springs

Permeable paver systems manage stormwater at the surface by allowing rainfall to infiltrate through joints or porous material rather than sheet-flowing into conventional drain infrastructure. In Colorado Springs, that function is load-bearing — not decorative.

NOAA climate normals recorded at NWS Pueblo show 15.91 inches of annual precipitation in the region, much of it delivered in short, high-intensity convective events. Systems that cannot absorb that pulse push water toward structures, driveways, and streets at the worst possible moment.

—

How Permeable Pavers Handle Surface Infiltration

Permeable paver systems are tested under ASTM C1782 and ASTM C1781, the standards governing structural and infiltration performance respectively. Both standards require measurable infiltration rates — not theoretical ones. A system that drains adequately in lab conditions but clogs within two seasons under Colorado’s sediment-loaded runoff fails its primary purpose.

The infiltration rate required depends on the intensity of local storm events. For Colorado Springs, convective summer storms can deliver high volumes of water in under 30 minutes, placing immediate demand on the surface layer. If that layer cannot absorb rainfall faster than it arrives, ponding begins at the paver field and hydrostatic pressure builds beneath it.

—

Soil Conditions That Complicate Installation

Not every site in Colorado Springs is equally suited to permeable paver systems. Neighborhoods including Broadmoor and Kissing Camels are underlain by Hydrologic Soil Group D soils, which have low native permeability and slow downward drainage rates.

HSG D soils do not eliminate permeable pavers as an option, but they change the design calculus significantly. When native soil cannot accept water at a meaningful rate, the aggregate base beneath the paver field must serve as a detention reservoir, holding water until it can drain slowly downward or be routed to a secondary outlet. Failing to account for this increases hydrostatic pressure beneath the paver field and can destabilize the base over time.

What HSG D Means for System Design

A permeable paver system installed over HSG D soil without adequate base storage will behave more like a conventional impervious surface during heavy rain. The aggregate reservoir must be sized to hold the design storm volume rather than pass it immediately to native soil. Geotechnical review is advisable on any HSG D site where the paver field abuts a structure foundation.

—

IRC Slope Requirements and Drainage Geometry

Permeable or not, any paver surface governed by the International Residential Code must maintain a minimum 1–2% slope — equal to ¼ inch per foot — directing water away from structures. This threshold is not relaxed for permeable systems.

The logic is straightforward. Even a high-performing permeable surface has a finite infiltration rate. During an event that exceeds that rate, water must have somewhere to go. Positive drainage slope ensures that overflow moves away from the building rather than toward it. Installations that sacrifice slope in favor of a level aesthetic frequently create the drainage problems they were intended to prevent.

—

Performance Standards and Long-Term Maintenance

ASTM C1782 governs the structural requirements for permeable interlocking concrete pavements, while ASTM C1781 covers field measurement of infiltration rates. Both are referenced in project specifications and are relevant to any installation subject to municipal stormwater compliance review.

Infiltration rates degrade over time as fine sediment accumulates in joints and the aggregate base. Vacuum sweeping and periodic joint recharge with clean angular aggregate are the standard maintenance methods for restoring performance. Systems that receive no maintenance within the first three to five years of installation often show infiltration rates well below design capacity.

—

FAQ

What standards govern permeable paver infiltration testing?

ASTM C1781 is the field measurement standard for surface infiltration rates of permeable interlocking concrete pavement systems. ASTM C1782 covers structural performance requirements separately. Both standards apply to installations subject to stormwater compliance specifications or municipal review.

Why do HSG D soils create problems for permeable paver installations?

Hydrologic Soil Group D soils have low permeability, which limits how quickly water moves from the aggregate base into native ground. This forces the base layer to act as temporary storage rather than a pass-through drainage medium. Undersized base reservoirs in HSG D conditions can lead to hydrostatic pressure buildup and long-term base instability.

Does Colorado Springs precipitation affect permeable paver sizing?

NOAA climate normals recorded at NWS Pueblo show 15.91 inches of annual precipitation for the Colorado Springs region, concentrated in high-intensity convective events. That storm profile places rapid, short-duration demand on surface infiltration capacity rather than sustained low-volume loading. Systems sized only for average rainfall rates rather than peak event intensity are likely to be undersized for local conditions.

What slope is required for pavers installed near a structure?

IRC site-drainage provisions require a minimum surface slope of 1–2%, equivalent to ¼ inch per foot, directed away from any structure. That requirement applies to permeable and conventional paver systems alike. Installations that eliminate slope to achieve a level surface risk channeling overflow toward foundations when infiltration capacity is exceeded.

—

Meta Description:

Permeable paver systems in Colorado Springs must meet ASTM C1781 infiltration standards and IRC slope requirements on HSG D soils receiving 15.91 inches of annual precipitation per NOAA normals.

Edge Restraint and Lateral Confinement in Freeze-Thaw Environments

Colorado Springs presents one of the more demanding thermal stress environments for permeable and decorative paver installations in the Front Range region. The city averages 124 freeze-thaw cycles per year, and that cycling frequency — not any single weather event — drives the cumulative horizontal pressure that unconfined paver edges cannot resist over time.

The primary keyword here is paver edge restraint freeze-thaw, and the search intent is informational with a local-commercial overlay. Contractors and property owners researching this topic need to understand why edge confinement fails, what standards govern slope retention, and how regional soil conditions complicate standard installation practice.

—

Why Lateral Displacement Compounds Over Seasons

Each freeze-thaw cycle produces minor horizontal movement at the perimeter of a paver field. That movement is small enough to ignore after one season. After three or four, joint spacing has widened, interlock has degraded, and the surface no longer drains as designed.

Rigid edge restraint interrupts this process by holding the field boundary fixed regardless of subbase thermal activity. Without it, the perimeter acts as a release valve — the entire field migrates incrementally outward until structural failure becomes visible.

The Mechanics of Thermal Cycling Pressure

When moisture in the subbase freezes, it expands. That expansion pushes upward and outward. Paver fields with open perimeters absorb that outward force through progressive joint widening rather than distributing it back into the field.

Confined edges redirect the force. The field stays dimensionally stable because the restraint system — whether aluminum, steel, or concrete — absorbs lateral load rather than allowing the perimeter pavers to shift.

—

IRC Slope Requirements and Why Confinement Protects Them

The International Residential Code specifies a minimum 1–2% surface slope away from structures, which translates to ¼ inch per foot. That gradient exists to move surface water away from foundations. It is not a suggestion — it is a drainage compliance requirement.

Consistent slope depends on consistent paver elevation. When lateral migration occurs at the field edge, individual pavers tilt or drop, creating low points that redirect water toward foundations rather than away from them. Edge restraint is, in this context, a drainage compliance tool as much as a structural one.

—

Soil Conditions Specific to the Colorado Springs Region

Pierre Shale and Dawson Formation clays underlie significant portions of the Colorado Springs metro area. Both are expansive soils. When they absorb moisture, they swell. When they dry, they shrink. That movement is vertical, but its effect on paver fields is lateral — differential heave beneath one section of a field pushes adjacent sections sideways.

Edge restraint systems installed over expansive soils must accommodate some vertical displacement without allowing that movement to translate into lateral migration. Spike-anchored aluminum edging driven into a heaving clay subbase will pull free over time. Systems with deeper mechanical anchoring or concrete deadman configurations perform more reliably in these conditions.

Selecting Restraint Systems for Expansive Subbase Conditions

Aluminum edging with 10-inch spikes at 12-inch intervals is standard practice on stable subbase material. Over Pierre Shale or Dawson clays, that specification is often insufficient. Contractors working in affected zones commonly specify either poured concrete edge curbs or commercial-grade steel restraint with extended spike lengths and closer spacing.

The restraint system should be selected after a soils assessment — not based on aesthetic preference or cost minimization alone. Differential heave that defeats an underpowered edge restraint system will cost more to repair than the upgraded hardware would have cost to install.

—

Installation Depth and Bedding Layer Interaction

Edge restraint anchoring depth interacts directly with bedding layer thickness. A 1-inch sand bedding layer over a compacted aggregate base positions the bottom of the paver at a specific elevation. The restraint system must hold the paver at that elevation laterally and prevent the bedding layer from migrating outward through the joint between the last paver and the restraint face.

Where bedding sand escapes laterally through a poorly fitted restraint system, the pavers above it settle unevenly. That settlement breaks the surface slope and creates drainage problems that appear unrelated to edge confinement — but trace directly back to it.

—

FAQ

What is paver edge restraint and why does it matter in freeze-thaw climates?

Paver edge restraint is a mechanical system installed at the perimeter of a paver field to prevent lateral displacement of the pavers and bedding layer. In freeze-thaw climates, repeated thermal cycling generates cumulative horizontal pressure that unconfined edges cannot resist across multiple seasons. Without restraint, joint widening and interlock failure develop progressively rather than from any single event.

How many freeze-thaw cycles does Colorado Springs experience annually?

Colorado Springs averages 124 freeze-thaw cycles per year, making it one of the more thermally active environments on the Front Range for hardscape installations. That figure reflects the frequency of temperature oscillations across the freezing point, not storm events or precipitation totals. Each cycle contributes incremental lateral stress at unconfined paver perimeters.

What IRC provision governs surface drainage slope for paver installations near structures?

The International Residential Code requires a minimum 1–2% surface slope — equivalent to ¼ inch per foot — directed away from structures. This provision applies to finished surface grades, including paver fields adjacent to foundations or buildings. Lateral migration of paver edges can compromise this slope by creating low points that redirect drainage toward structures rather than away from them.

What soil types in Colorado Springs create additional risk for paver edge restraint systems?

Pierre Shale and Dawson Formation clays, present across much of the Colorado Springs metro area, are expansive soils that swell and shrink with moisture changes. That vertical movement generates lateral pressure on adjacent paver sections, which can defeat standard spike-anchored aluminum edging over time. Contractors working over these formations typically specify concrete curb restraints or extended-anchor steel systems.

What happens when edge restraint fails under repeated freeze-thaw stress?

When edge restraint fails, the paver field perimeter migrates outward incrementally with each thermal cycle. Joint spacing widens, the interlock pattern that gives the pavers their load-distributing capacity breaks down, and surface drainage slope is compromised. Repairing a failed field requires resetting pavers, replenishing bedding material, and installing a more robust restraint system — work that costs substantially more than correct initial specification.

—

Meta Description:

Paver edge restraint in Colorado Springs freeze-thaw environments — 124 annual thermal cycles, IRC slope requirements, and Pierre Shale soil conditions explained for Front Range installations.

Frequently Asked Questions

Homeowners planning a paver patio in Colorado Springs’ clay-dominant soils consistently encounter the same critical questions about base depth, Pierre Shale’s long-term influence on patio stability, applicable ASTM compaction standards, and permitting obligations under the Pikes Peak Regional Building Department. Base depth isn’t arbitrary — in soils with high swell potential, insufficient excavation directly translates to surface displacement after a single precipitation event. The answers to these questions shape every material and sequencing decision before the first paver is set.

How deep should paver base be in Colorado clay soil?

Paver Base Depth in Colorado Clay Soil

Colorado clay soil requires a minimum of 8 to 12 inches of compacted aggregate base beneath pavers, not counting the sand setting bed. That range exceeds the 4 to 6 inches commonly cited in general installation guides, and for good reason. The combination of expansive clay, Pierre Shale geology, and repeated freeze-thaw cycles creates ground movement that destroys undersized bases.

—

Why Colorado Clay Demands More Base Material

Clay soils shrink and swell with moisture changes. In Colorado’s Front Range, Pierre Shale underlies much of the region and carries documented swell potential that can lift or crack a paver surface when base preparation is inadequate.

The region also experiences roughly 124 freeze-thaw cycles annually, according to Pikes Peak Regional Building Department (PPRBD) data referenced in local geotechnical practice. Each cycle forces water in the soil through expansion and contraction. A shallow base transmits that movement directly to the paver surface.

Standard national installation guides from the Interlocking Concrete Pavement Institute (ICPI) set a baseline of 4 to 6 inches for residential applications in stable soils. Colorado clay does not qualify as stable soil. Local contractors and structural engineers consistently specify 8 to 12 inches as the working minimum for this region.

—

Excavation Depth Breakdown

Compacted Aggregate Base

Crushed aggregate base — typically Class 6 road base in Colorado — must be compacted in lifts no thicker than 4 inches. Dumping 10 inches of material and compacting it once does not achieve the same density. Plate compactors should run in overlapping passes across each lift before the next layer goes down.

The total excavation depth accounts for the aggregate base, a 1-inch sand setting bed, and the paver thickness. For a standard 2 3/8-inch concrete paver on a 10-inch base, excavation runs approximately 13 to 14 inches below finished grade.

Sand Setting Bed

The sand layer stays at 1 inch after screeding. Thicker sand beds compress unevenly and allow surface wobble. This layer serves only as a final leveling medium — it is not structural.

Geotextile Fabric

Many Colorado installers place non-woven geotextile fabric between the native clay subgrade and the base aggregate. The fabric limits clay migration upward into the base over time, which preserves compaction and drainage performance. It does not replace proper base depth.

—

Soil Preparation Before Base Installation

Excavated subgrade must be compacted before any aggregate goes in. Soft or disturbed clay subgrade transfers movement upward regardless of base thickness. Proof-rolling with a loaded drum compactor or plate compactor identifies soft spots that need additional stabilization or over-excavation.

In areas with pronounced Pierre Shale activity, some engineers specify lime stabilization of the native clay subgrade before base installation. This chemically reduces the clay’s swell potential. A geotechnical engineer determines whether stabilization is warranted based on site-specific soil testing.

—

Permit and Inspection Requirements

PPRBD may require a site-specific soils report confirming adequate base design before granting inspection approval on larger hardscape projects. Residential patio work often falls below the threshold for mandatory geotechnical reporting, but any project near a structure, retaining wall, or slope warrants confirmation with the local building department.

Pulling a permit also triggers an inspection that catches base deficiencies before they get buried. Contractors who skip permits avoid that accountability, and any failure that follows becomes a cost the property owner absorbs.

—

FAQ

How deep should paver base be in Colorado clay soil?

A compacted aggregate base of 8 to 12 inches is the accepted minimum for Colorado clay, measured separately from the 1-inch sand setting bed. This exceeds ICPI baseline recommendations because Pierre Shale swell potential and approximately 124 annual freeze-thaw cycles create ground movement that shallower bases cannot resist. Geotechnical conditions on individual sites may require additional depth beyond that range.

Does the freeze-thaw cycle count in Colorado affect paver base requirements?

Colorado’s Front Range experiences roughly 124 freeze-thaw cycles per year, a figure referenced in regional geotechnical practice and PPRBD documentation. Each cycle subjects the base and subgrade to repeated expansion and contraction stress. Inadequate base depth allows that movement to reach the paver surface and cause displacement or cracking.

Is geotextile fabric necessary under pavers in Colorado?

Non-woven geotextile fabric between native clay subgrade and the aggregate base is a widely used practice in Colorado installations, though it is not a universal code requirement. The fabric limits clay fines migration into the base over time, which preserves drainage and long-term compaction. It functions as a supplemental measure and does not reduce the minimum required base depth.

When does PPRBD require a soils report for a paver project?

PPRBD may require a site-specific soils report for hardscape projects where base design must be confirmed before inspection approval, particularly on projects near structures or on problematic soils. Routine residential patio work often falls below that threshold, but project scope and proximity to foundations affect the determination. Confirming permit requirements directly with PPRBD before excavation prevents costly compliance issues.

—

Meta Description:

Colorado clay soil paver base requirements call for 8 to 12 inches of compacted aggregate, exceeding ICPI standards due to Pierre Shale swell potential and 124 annual freeze-thaw cycles in the Front Range region.

Does Pierre Shale affect paver patio longevity?

Does Pierre Shale Affect Paver Patio Longevity?

Pierre Shale poses a direct structural risk to paver patios in Colorado Springs. The expansive clay minerals embedded in this formation can shift base materials, disrupt surface grades, and cause premature failure in installations that lack adequate geotechnical preparation.

What Pierre Shale Actually Does to Ground Stability

Pierre Shale is a marine sedimentary formation widespread beneath Colorado Springs and the Front Range. Its bentonite interbeds contain smectite clay minerals that absorb water and expand with significant volume change. This expansion is measured by the Plasticity Index, a standard geotechnical metric — higher values indicate greater swell potential and instability under loaded surfaces.

When moisture infiltrates the soil profile, the bentonite-rich layers swell. When the soil dries, those same layers shrink. This cycle repeats with every rain event and every dry season, generating vertical and lateral ground movement beneath any hardscape placed above it.

Freeze-thaw cycling compounds the problem. Colorado Springs sits at an elevation where frost penetration can reach 38 inches. Base material that doesn’t extend below that depth is vulnerable to frost heave, which combines with Pierre Shale’s moisture-driven movement to produce compounding displacement.

How Ground Movement Translates to Paver Damage

Surface-level signs of Pierre Shale influence include uneven joints, rocking pavers, standing water on previously draining surfaces, and cracked edge restraints. These aren’t cosmetic issues — they reflect base-level displacement working its way upward.

A single freeze-thaw event or heavy precipitation can shift compacted base material enough to tilt paver sections. Over multiple seasons, cumulative movement separates joint sand, allows weed infiltration, and undermines the structural integrity of the entire installation.

Patios built without geotechnical-informed base designs are particularly exposed. Standard residential base depths that work in other regions can fall short in Colorado Springs because they don’t account for Pierre Shale’s specific behavior under the local frost line.

Engineering Responses to Pierre Shale Conditions

Addressing Pierre Shale requires design decisions made before excavation begins. Base depth must reach below the 38-inch frost line. Compacted aggregate base selection should account for drainage characteristics, since moisture control is central to limiting swell cycles in bentonite interbeds.

Geotextile separation fabric between native soil and aggregate base is a standard mitigation practice. It prevents fine clay particles from migrating into the base course and degrading compaction over time.

In high-swell areas, some contractors use modified base systems with additional drainage layers or geo-grid reinforcement to distribute load and resist lateral movement. Backyard Paradiso applies engineered base specifications tailored to Colorado Springs’ geotechnical conditions, incorporating Pierre Shale behavior into installation design rather than treating it as an afterthought.

Soil Testing Before Installation

A geotechnical assessment before project design identifies Plasticity Index values in the specific soil profile at the site. This data directly informs base depth, material selection, and drainage strategy. Skipping this step means designing to generic standards that may not match actual site conditions.

—

FAQ

Does Pierre Shale affect all paver patios in Colorado Springs?

Pierre Shale underlies large portions of Colorado Springs, but its influence on any specific patio depends on site-specific soil composition, drainage conditions, and installation depth. Areas with higher bentonite concentrations face greater swell risk. The Colorado Geological Survey documents the formation’s distribution across El Paso County and its associated hazards for residential construction.

What is the Plasticity Index and why does it matter for paver installations?

The Plasticity Index measures the moisture range over which a soil behaves plastically — higher values indicate greater expansion and shrinkage potential. Pierre Shale bentonite interbeds can carry Plasticity Index values that signal significant swell risk under hardscape. Geotechnical engineers use this metric to determine whether standard base preparation is sufficient or whether modified designs are required.

How deep should a paver base be in Colorado Springs?

Base depth in Colorado Springs must account for a frost penetration depth of approximately 38 inches. Standard base depths used in warmer or lower-elevation markets are insufficient when Pierre Shale is present below the installation. Local contractors familiar with Front Range geotechnical conditions typically specify base configurations that address both frost and swell factors simultaneously.

Can an existing paver patio damaged by Pierre Shale be repaired?

Paver patios with Pierre Shale-related displacement can often be remediated by removing affected sections, regrading the base, and reinstalling with corrected depth and drainage. Whether partial or full removal is needed depends on how extensively the base has been compromised. A contractor with Front Range geotechnical experience can assess whether remediation or full reinstallation is the more cost-effective path.

—

Meta Description:

Pierre Shale affects paver patio longevity in Colorado Springs through bentonite-driven ground movement. Frost penetration reaches 38 inches, requiring engineered base systems for stable hardscape installations.

What ASTM standards apply to paver patio base compaction?

ASTM Standards for Paver Patio Base Compaction

Paver patio base compaction in Colorado Springs falls under ASTM D1557, the Modified Proctor test standard. This standard sets the benchmark for achieving 95% maximum dry density in compacted subbase layers. Getting this right determines whether a patio remains stable or develops differential settlement over time.

—

ASTM D1557: The Governing Standard

ASTM D1557 establishes the Modified Proctor compaction method, which uses higher compactive effort than its predecessor, ASTM D698 (Standard Proctor). For paver installations, contractors target 95% of maximum dry density as measured by this test.

Compaction is applied in lifts of 3 to 4 inches. Thicker lifts prevent equipment from adequately densifying material at depth, leaving weak zones that only reveal themselves after loading or frost cycles.

Why Modified Proctor Rather Than Standard Proctor

The Modified Proctor applies roughly 4.5 times more compactive energy than ASTM D698. This makes it more representative of field conditions under vibratory plate compactors and jumping jack tampers — the equipment actually used on residential patio projects.

—

Soil Conditions in Colorado Springs

Pierre Shale and Dawson Formation clay lenses are common throughout the Colorado Springs area. Both are expansive soils with high shrink-swell potential, which means standard compaction procedures must be applied with tighter lift control.

Clay-bearing soils can appear well-compacted at the surface while remaining loose below. Testing with a nuclear density gauge or sand cone method at each lift, rather than only at finish grade, catches these problems before installation proceeds.

Subgrade Preparation Before Compaction

Organic material, loose fill, and disturbed native soil must be removed before compaction begins. Compacting over unstable subgrade voids the value of any lift-by-lift testing. Pierre Shale in particular may require scarification and moisture conditioning to reach the density targets ASTM D1557 specifies.

—

Regulatory Oversight

The Pikes Peak Regional Building Department conducts compaction inspections during residential construction in El Paso County. Inspectors verify compliance with compaction standards before hardscape installations proceed on permitted projects.

Contractors working on unpermitted patio projects carry full responsibility for verifying their own compaction through third-party geotechnical testing. Skipping verification on expansive soils is a documented cause of paver failure in this region.

—

FAQ

What compaction percentage does ASTM D1557 require for paver base?

ASTM D1557 targets 95% of maximum dry density for paver patio base layers. This threshold applies to each compacted lift, not just the final surface. The Pikes Peak Regional Building Department uses this figure as the compliance benchmark during inspections.

How thick should each compaction lift be for a paver base?

Lifts should be compacted in 3 to 4 inch increments for paver installations. Thicker lifts prevent compaction equipment from achieving uniform density throughout the full depth of material. ASTM D1557 testing conducted mid-lift rather than at finish grade provides more reliable verification.

Does expansive soil in Colorado Springs change compaction requirements?

Expansive soils like Pierre Shale require stricter lift control and moisture conditioning before compaction. Shrink-swell behavior in these soils can undermine compaction gains if moisture content falls outside the optimum range identified in ASTM D1557 testing. Geotechnical review is advisable before base installation on sites with known clay lenses.

Which test method verifies field compaction results?

Nuclear density gauge and sand cone testing, both governed by separate ASTM protocols, verify that field compaction matches the Modified Proctor standard. These tests are conducted on compacted lifts in place rather than on laboratory samples. A third-party geotechnical firm typically performs this testing on residential construction sites in El Paso County.

—

Meta Description:

ASTM D1557 governs paver patio base compaction in Colorado Springs, requiring 95% density in 3–4 inch lifts on expansive Pierre Shale and Dawson Formation soils.

Do paver patios require a permit in Colorado Springs?

Do Paver Patios Require a Permit in Colorado Springs?

Most paver patio installations in Colorado Springs do not require a building permit. However, specific site conditions and structural elements can change that quickly.

The Pikes Peak Regional Building Department (PPRBD) governs residential construction permits in the region. For standard ground-level paver patios, homeowners generally proceed without triggering a formal review. The permit question becomes relevant once the project involves structural components or significant grade changes.

—

When a Permit Is Required

Retaining Walls Over Four Feet

Any retaining wall exceeding four feet in height requires mandatory review by PPRBD. This threshold applies to the wall’s total height, not just the exposed portion above grade. Projects combining a patio with a tall retaining wall often cross into permitted territory even when the patio surface itself would not.

Soils Reports for Permitted Projects

PPRBD requires a site-specific soils report to be on-site at first inspection for all permitted residential construction. This applies when any element of the project — such as a qualifying retaining wall — falls under permit requirements.

—

Pierre Shale Zones

Colorado Springs has areas underlain by Pierre Shale, an expansive soil that can shift with moisture changes and create structural problems for hardscaping and foundations. Homeowners in these zones face additional scrutiny. PPRBD recommends verifying project scope before breaking ground, particularly when retaining walls or drainage modifications are involved.

—

FAQ

Does a simple ground-level paver patio require a permit in Colorado Springs?

Ground-level paver patios typically fall outside PPRBD permit requirements in Colorado Springs. No structural review is triggered when the installation involves only surface pavers without walls or footings. Homeowners uncertain about their specific parcel should contact PPRBD directly to confirm.

What triggers a required permit for patio-related work?

A retaining wall exceeding four feet in height triggers mandatory permit review by the Pikes Peak Regional Building Department. That threshold applies regardless of whether the retaining wall is the primary project or a secondary component of a larger patio installation. A site-specific soils report must be available on-site at first inspection for any project that enters the permit process.

Are Pierre Shale areas treated differently by PPRBD?

Properties in Pierre Shale zones carry added risk due to expansive soil conditions that can affect hardscape stability. PPRBD does not maintain a separate permit category exclusively for these zones, but the department advises project verification before construction begins. Soil movement in these areas can affect both permitted and unpermitted installations.

—

Meta Description

Paver patio permit rules in Colorado Springs explained. Most installations require no permit, but retaining walls over four feet trigger PPRBD review and a mandatory soils report.

Backyard Paradiso Paver Patio Installation Across Colorado Springs

Colorado Springs presents installation conditions that most paver contractors never encounter. Pierre Shale geology, a 38-inch frost line, and 124 annual freeze-thaw cycles demand base preparation that goes well beyond standard practice. Backyard Paradiso has built its paver patio work around these specific conditions — applying ASTM D1557-compliant compaction protocols and swell-mitigation base strategies across a service area where soil classification shifts significantly from one neighborhood to the next.

—

Why Colorado Springs Soil Conditions Define the Work

The Pierre Shale formation underlying much of Colorado Springs contains bentonite interbeds with high swell potential. When bentonite absorbs moisture, it expands with enough force to displace improperly prepared base material, leading to surface heave, drainage failure, and joint separation over time.

Colorado Springs’ frost line depth — 38 inches per local building standards — compounds this. A base that doesn’t account for both frost penetration and reactive soil movement will degrade regardless of the paver quality or installation craft applied above it.

Hydrologic Soil Group classification varies across the metro area. HSG B soils in Briargate and Pine Creek drain reasonably well. HSG D soils in the Broadmoor and Kissing Camels corridors have very low infiltration rates, which changes drainage design requirements substantially.

—

ASTM D1557 Compaction and What It Means in Practice

ASTM D1557 establishes the Modified Proctor test standard for soil compaction — the method used to determine the maximum dry density achievable at a given moisture content. Backyard Paradiso applies this standard to base layer preparation, which provides a documented, repeatable threshold rather than a field approximation.

In high-swell soil environments, compaction protocol alone isn’t sufficient. Swell-mitigation strategies — which may include subgrade stabilization, geotextile separation layers, or modified aggregate base depth — are determined based on site-specific conditions rather than a single regional default.

This matters because Pierre Shale behavior is not uniform across parcels. Two adjacent properties can present meaningfully different subgrade conditions depending on depth to bedrock, drainage history, and prior disturbance.

—

Service Area Soil Variability Across Colorado Springs Neighborhoods

Backyard Paradiso serves Flying Horse, Wolf Ranch, Cordera, Black Forest, Pine Creek, Briargate, the Broadmoor, and Kissing Camels, among other locations throughout the Colorado Springs metro.

Northern Corridor: Flying Horse, Wolf Ranch, Cordera, Briargate, Pine Creek

These neighborhoods generally fall within HSG B classification, meaning the subgrade allows moderate infiltration under saturated conditions. Base preparation here focuses on proper compaction depth and freeze-thaw resilience rather than aggressive drainage intervention at the subgrade level.

Southern and Foothill Corridors: Broadmoor, Kissing Camels

HSG D classification in these areas reflects soils with clay content high enough to restrict drainage severely. Base design in these zones requires closer attention to surface and subsurface drainage routing, and swell-mitigation measures take on greater structural importance.

Black Forest

Black Forest properties often involve variable depth to granite and decomposed granitic soils, which shifts the base preparation challenge from swell management toward load distribution and frost heave resistance over less cohesive material.

—

What Base Preparation Determines Over Time

A paver patio’s long-term performance in Colorado Springs is almost entirely a function of what happens below the surface. The pavers themselves rarely fail. Base failure produces the surface problems — settlement, edge separation, drainage ponding, and joint instability — that require costly remediation or full reinstallation.

Properly engineered base preparation affects three outcomes directly: structural longevity under freeze-thaw stress, drainage performance through and away from the paved surface, and the functional and recoverable value of finished outdoor square footage. Colorado Springs’ seasonal cycles are demanding enough that shortcuts in base preparation compound over time rather than stabilize.

—

Consultations and Project Scope

Backyard Paradiso offers consultations by appointment for properties across the Colorado Springs service area. Site-specific assessment — not a standardized base specification — drives the preparation approach for each project.

For properties in geologically variable areas like Black Forest or the Broadmoor corridor, pre-installation evaluation of subgrade conditions is particularly relevant to accurate scope and cost planning.

—

Frequently Asked Questions

What makes paver patio base preparation in Colorado Springs different from other Front Range markets?

Colorado Springs sits over Pierre Shale geology with high-swell bentonite interbeds, has a 38-inch frost line depth, and experiences approximately 124 freeze-thaw cycles annually — conditions more demanding than those in lower-elevation Front Range cities. Denver’s frost line is shallower and its urban soils less prone to expansive swell at the same scale. The combined effect in Colorado Springs requires deeper base preparation and active swell-mitigation strategies that are not standard practice in markets like Aurora or Thornton.

What is ASTM D1557 and why does it apply to paver patio installation?

ASTM D1557 is the Modified Proctor compaction standard published by ASTM International, defining test methods for determining maximum dry density and optimum moisture content of soil. It provides a measurable benchmark for compaction rather than a visual or tactile field estimate. Applying this standard to base preparation ensures that compaction levels meet a documented threshold, which is particularly important in reactive soils where under-compaction accelerates settlement.

How does Hydrologic Soil Group classification affect paver patio design?

Hydrologic Soil Group classification, defined by the USDA Natural Resources Conservation Service, categorizes soils by their saturated hydraulic conductivity and drainage potential. HSG D soils — found in parts of the Broadmoor and Kissing Camels areas — have very low infiltration rates, requiring drainage design that routes water away from the subgrade rather than relying on natural percolation. HSG B soils in northern Colorado Springs neighborhoods allow more moderate drainage, which changes both base depth requirements and surface grading strategy.

Does Pierre Shale affect all Colorado Springs paver patio projects equally?

Pierre Shale influence varies by parcel depending on depth to formation, soil amendments from prior construction, and site drainage history. Properties in Black Forest, for example, often have granitic overburden that changes the preparation challenge from swell management to load distribution. Site-specific subgrade assessment is the only reliable method for determining how Pierre Shale conditions will affect a given installation.

When should a property owner schedule a consultation before starting a paver patio project?

Consultation is most valuable before any excavation or base material is ordered, particularly on properties with visible drainage issues, prior hardscape failure, or locations in HSG D soil zones. The Colorado Springs Utilities and El Paso County both maintain soil and drainage records that can inform pre-project assessment. Early consultation allows base depth, drainage routing, and swell-mitigation specifications to be set before scope and cost are finalized.

—

Meta Description:

Backyard Paradiso installs paver patios across Colorado Springs using ASTM D1557-compliant compaction and swell-mitigation base strategies designed for Pierre Shale geology and a 38-inch frost line.
